Multiple encryption

Multiple encryption is the process of encrypting an already encrypted message one or more times, either using the same or a different algorithm. It is also known as cascade encryption, cascade ciphering, multiple encryption, and superencipherment. Superencryption refers to the outer-level encryption of a multiple encryption.

Some cryptographers, like Matthew Green of Johns Hopkins University, say multiple encryption addresses a problem that mostly doesn’t exist: Modern ciphers rarely get broken... You’re far more likely to get hit by malware or an implementation bug than you are to suffer a catastrophic attack on AES.[1] .... and in that quote lies the reason for multiple encryption, namely poor implementation. Using two different cryptomodules and keying processes from two different vendors requires both vendors' wares to be compromised for security to fail.

Independent keys

Picking any two ciphers, if the key used is the same for both, the second cipher could possibly undo the first cipher, partly or entirely. This is true of ciphers where the decryption process is exactly the same as the encryption process—the second cipher would completely undo the first. If an attacker were to recover the key through cryptanalysis of the first encryption layer, the attacker could possibly decrypt all the remaining layers, assuming the same key is used for all layers.

To prevent that risk, one can use keys that are statistically independent for each layer (e.g. independent RNGs).

Ideally each key should have separate and different generation, sharing, and management processes.

Independent Initialization Vectors

For en/decryption processes that require sharing an Initialization Vector (IV) / nonce these are typically, openly shared or made known to the recipient (and everyone else). Its good security policy never to provide the same data in both plaintext and ciphertext when using the same key and IV. Therefore, its recommended (although at this moment without specific evidence) to use separate IVs for each layer of encryption.

Importance of the first layer

With the exception of the one-time pad, no cipher has been theoretically proven to be unbreakable. Furthermore, some recurring properties may be found in the ciphertexts generated by the first cipher. Since those ciphertexts are the plaintexts used by the second cipher, the second cipher may be rendered vulnerable to attacks based on known plaintext properties (see references below).

This is the case when the first layer is a program P that always adds the same string S of characters at the beginning (or end) of all ciphertexts (commonly known as a magic number). When found in a file, the string S allows an operating system to know that the program P has to be launched in order to decrypt the file. This string should be removed before adding a second layer.

To prevent this kind of attack, one can use the method provided by Bruce Schneier:[2]

Generate a random pad R of the same size as the plaintext.
Encrypt R using the first cipher and key.
XOR the plaintext with the pad, then encrypt the result using the second cipher and a different (!) key.
Concatenate both ciphertexts in order to build the final ciphertext.

A cryptanalyst must break both ciphers to get any information. This will, however, have the drawback of making the ciphertext twice as long as the original plaintext.

Note, however, that a weak first cipher may merely make a second cipher that is vulnerable to a chosen plaintext attack also vulnerable to a known plaintext attack. However, a block cipher must not be vulnerable to a chosen plaintext attack to be considered secure. Therefore, the second cipher described above is not secure under that definition, either. Consequently, both ciphers still need to be broken. The attack illustrates why strong assumptions are made about secure block ciphers and ciphers that are even partially broken should never be used.

The Rule of Two

The Rule of Two is a data security principle from the NSA's Commercial Solutions for Classified Program (CSfC).[3] It specifies two completely independent layers of cryptography to protect data. For example, data could be protected by both hardware encryption at its lowest level and software encryption at the application layer. It could mean using two FIPS-validated software cryptomodules from different vendors to en/decrypt data.

The importance of vendor and/or model diversity between the layers of components centers around removing the possibility that the manufacturers or models will share a vulnerability. This way if one components is compromised there is still an entire layer of encryption protecting the information at rest or in transit. The CSfC Program offers solutions to achieve diversity in two ways. "The first is to implement each layer using components produced by different manufacturers. The second is to use components from the same manufacturer, where that manufacturer has provided NSA with sufficient evidence that the implementations of the two components are independent of one another."[4]

The principle is practiced in the NSA's secure mobile phone called Fishbowl.[5] The phones use two layers of encryption protocols, IPsec and Secure Real-time Transport Protocol (SRTP), to protect voice communications. The Samsung Galaxy S9 Tactical Edition is also an approved CSfC Component.

Example of Multiple Encryption

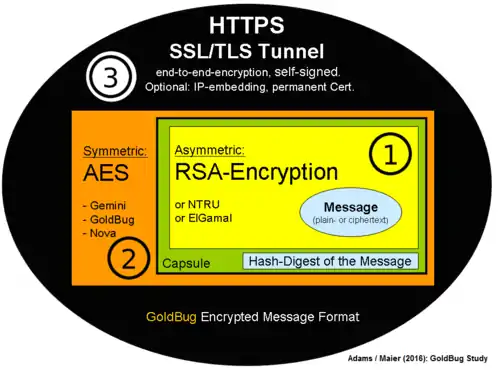

The figure shows from inside to outside the process of how the encrypted capsule is formed in the context of Echo Protocol, used by the Software Application GoldBug Messenger.[6] GoldBug has implemented a hybrid system for authenticity and confidentiality.[5]

First layer of the encryption: The ciphertext of the original readable message is hashed, and subsequently the symmetric keys are encrypted via the asymmetric key - e.g. deploying the algorithm RSA. In an intermediate step the ciphertext, and the hash digest of the ciphertext are combined into a capsule, and packed together. It follows the approach: Encrypt-then-MAC. In order for the receiver to verify that the ciphertext has not been tampered with, the digest is computed before the ciphertext is decrypted.

Second layer of encryption: Optionally it is still possible, therefore to encrypt the capsule of the first layer in addition with an AES-256, - comparable to a commonly shared, 32-character long symmetric password. Hybrid Encryption is then added to multiple encryption.

Third layer of the encryption: Then, this capsule is transmitted via a secure SSL/TLS connection to the communication partner

References

Green, Matthew (February 2, 2012). "Multiple Encryption".
Schneier, Bruce (30 March 2015). Applied Cryptography, Second Edition: Protocols, Algorithms, and Source Code in C. Wiley Computer Publishing. p. 368. ISBN 9781119096726.
"Commercial Solutions for Classified Program". US National Security Agency. Archived from the original on 25 December 2015. Retrieved 24 December 2015.
"Mobile Access Capability Package". US National Security Agency. Retrieved 28 February 2020.
Adams, David / Maier, Ann-Kathrin (2016): BIG SEVEN Study, open source crypto-messengers to be compared - or: Comprehensive Confidentiality Review & Audit of GoldBug, Encrypting E-Mail-Client & Secure Instant Messenger, Descriptions, tests and analysis reviews of 20 functions of the application GoldBug based on the essential fields and methods of evaluation of the 8 major international audit manuals for IT security investigations including 38 figures and 87 tables., URL: https://sf.net/projects/goldbug/files/bigseven-crypto-audit.pdf - English / German Language, Version 1.1, 305 pages, June 2016 (ISBN: DNB 110368003X - 2016B14779)
http://goldbug.sf.net
