Air shower (physics)

An air shower is an extensive (many kilometres wide) cascade of ionized particles and electromagnetic radiation produced in the atmosphere when a primary cosmic ray (i.e. one of extraterrestrial origin) enters the atmosphere. When a particle, which could be a proton, a nucleus, an electron, a photon, or (rarely) a positron, strikes an atom's nucleus in the air it produces many energetic hadrons. The unstable hadrons decay in the air speedily into other particles and electromagnetic radiation, which are part of the shower components. The secondary radiation rains down, including x-rays, muons, protons, antiprotons, alpha particles, pions, electrons, positrons, and neutrons.

Cosmic ray air shower created by a 1TeV proton hitting the atmosphere 20 km above the Earth. The shower was simulated using the AIRES package. Animated 3d models of this and other showers can be found on COSMUS.

Air shower detected in a cloud chamber.

The dose from cosmic radiation is largely from muons, neutrons, and electrons, with a dose rate that varies in different parts of the world and based largely on the geomagnetic field, altitude, and solar cycle. Airline crews receive more cosmic rays if they routinely work flight routes that take them close to the North or South pole at high altitudes, where this type of radiation is maximal.

The air shower was discovered by Bruno Rossi in 1934. By observing the cosmic ray with the detectors placed apart from each other, Rossi recognized that many particles arrive simultaneously at the detectors.[1] This phenomenon is now called an air shower.

Air shower formation

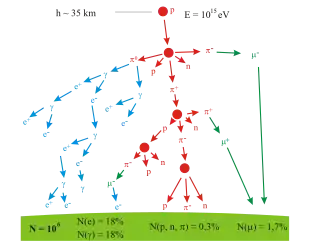

Air shower formation in the atmosphere. First proton collides with a particle in the air creating pions, protons and neutrons.

After the primary cosmic particle has collided with the air molecule, the main part of the first interactions are pions. Also kaons and baryons may be created. Pions and kaons are not stable, thus they may decay into other particles.

The neutral pions ${\displaystyle \pi ^{0}}$ decay into photons ${\displaystyle \gamma }$ in a process ${\displaystyle \pi ^{0}\rightarrow \gamma +\gamma }$. The photons produced form an electromagnetic cascade by creating more photons, protons, antiprotons, electrons and positrons.[2]

The charged pions ${\displaystyle \pi ^{\pm }}$ preferentially decay into muons and neutrinos in the processes ${\displaystyle \pi ^{+}\rightarrow \mu ^{+}+\nu }$ and ${\displaystyle \pi ^{-}\rightarrow \mu ^{-}+\nu }$. This is how the muons and neutrinos are produced in the air shower.[2]

The same holds true for kaons which can produce muons in the process ${\displaystyle K^{+/-}\rightarrow \mu ^{+/-}+\nu }$. In addition, kaons can produce also pions via the decay mode ${\displaystyle K^{+/-}\rightarrow \pi ^{+/-}+\pi ^{0}}$.[2]

Detection

The original particle arrives with high energy and hence a velocity near the speed of light, so the products of the collisions tend also to move generally in the same direction as the primary, while to some extent spreading sidewise. In addition, the secondary particles produce a widespread flash of light in forward direction due to the Cherenkov effect, as well as fluorescence light that is emitted isotropically from the excitation of nitrogen molecules. The particle cascade and the light produced in the atmosphere can be detected with surface detector arrays and optical telescopes. Surface detectors typically use Cherenkov detectors or Scintillation counters to detect the charged secondary particles at ground level. The telescopes used to measure the fluorescence and Cherenkov light use large mirrors to focus the light on PMT clusters. Finally, air showers emit radio waves due to the deflection of electrons and positrons by the geomagnetic field. As advantage over the optical techniques, radio detection is possible around the clock and not only during dark and clear nights. Thus, several modern experiments, e.g., TAIGA, LOFAR, or the Pierre Auger Observatory use radio antennas in addition to particle detectors and optical techniques.

The longitudinal profile of the number of charged particles can be parameterized by the Gaisser–Hillas function.
